When selecting the best lamination method for your display, it is crucial to understand the differences between optical bonding and air bonding. These two techniques offer unique advantages and disadvantages, impacting display performance, durability, and cost. In this article, we will explore both lamination methods in detail to help you make an informed decision.
Lamination refers to the process of bonding the different layers of an LCD display, typically consisting of the cover glass, touch panel, and display module. There are two primary methods for this: full lamination (optical bonding) and frame lamination (air bonding). Each technique has its own advantages and use cases.
Optical bonding involves using a transparent adhesive, such as Optical Clear Adhesive (OCA) or Liquid Optically Clear Adhesive (LOCA), to seamlessly bond the touch panel and display screen. This eliminates the air gap between the layers, creating a unified display unit.
1. Superior Display Quality:
Optical bonding eliminates the air gap, reducing light reflection and improving brightness.
Contrast is enhanced, leading to a clearer and sharper display with better visibility under sunlight.
The screen appears more transparent, providing a premium viewing experience.
2. Higher Display Brightness:
The absence of an air layer reduces light loss, increasing the brightness and clarity of the display.
Dust and water vapor are less likely to accumulate between layers, maintaining screen cleanliness.
3. Reduced Noise Interference:
Optical bonding creates a close connection between the touch panel and display screen, reducing electromagnetic interference.
l Improves touch accuracy and responsiveness, offering a smoother user experience.
4. Thinner and More Durable Design:
Optical bonding results in a thinner display, reducing the overall device thickness.
The adhesive strengthens the display, making it more resistant to impact and reducing the risk of cracks.
The process is more complex and requires high precision.
Higher production costs due to advanced equipment and materials.
If damaged, repair costs are significantly higher as the entire unit may need replacement.
1. High-end Consumer Electronics
Smartphones and Tablets: Optical bonding is widely used in premium smartphones and tablets due to its ability to provide high-quality displays with reduced reflections and light loss, meeting the high demands for display clarity and touch sensitivity.
2. Outdoor Displays
Advertising Screens and Digital Signage: Optical bonding technology is ideal for outdoor advertising displays and digital signage, as it enhances brightness and reduces glare, ensuring high visibility even under direct sunlight.
3. Medical and Industrial Displays
Medical Monitors and Industrial Control Screens: Optical bonding offers high image clarity and precise touch operation, making it highly suitable for medical equipment, industrial displays, and other applications where display accuracy is critical.
4. Automotive Displays
In-Vehicle Information Systems: Optical bonding technology is extensively used in automotive displays, enhancing readability in various lighting conditions while contributing to the overall aesthetic appeal of the car’s interior.
Air bonding, also known as frame lamination, uses double-sided tape to attach the touch panel to the display screen only at the edges, leaving an air gap in between.
1. Lower Production Costs:
The process is simpler and more cost-effective than optical bonding.
Minimal material and equipment requirements make it a budget-friendly option.
2. Easier Maintenance and Repairs:
Since the display and touch panel are not fully bonded, a damaged component can be replaced individually without affecting the other parts.
Lower repair costs compared to optical bonding.

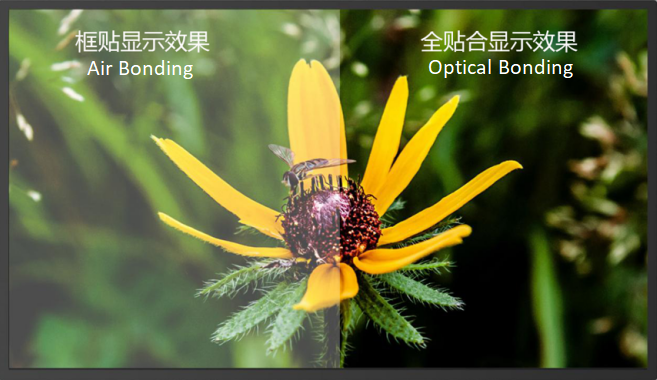

The presence of an air gap leads to higher light reflection, reducing display brightness and contrast.
Dust and moisture can accumulate in the air gap, affecting long-term durability.
The touch sensitivity and overall viewing experience are inferior to optical bonding.
1.Consumer Electronics (Cost-Effective Solutions)
Entry-level Smartphones and Televisions: Air bonding is commonly used in budget-friendly smartphones and televisions, where moderate display quality is sufficient, and cost-efficiency is a key factor in production.
2.Automotive Displays (Cost-Sensitive Applications)
Car Entertainment Systems: Air bonding is used in non-critical in-vehicle displays where the focus is on cost reduction, providing an affordable solution while meeting basic functional requirements.
3.Public Information Displays
Electronic Billboards and Kiosk Displays: Air bonding is a cost-effective option for public signage and kiosks where the display quality doesn’t need to be top-tier but still needs to serve its purpose in indoor or semi-outdoor environments.
3. Wearable Devices and Low-Cost Electronics
Smartwatches and Fitness Trackers: Air bonding is used in wearable devices like smartwatches and fitness trackers, where a lower-cost display solution is adequate for basic functionality without compromising essential performance.
LCM lamination method | |||||
Craft | Laminating material | Craft requirements | Size | Cost | Pros and cons: |
Optical bonding | OCA | High | 1~15.6 | High | The process is simple and has good detachability; Limited in size, it is mostly used in GF, GFF and PG products. |
Optical bonding | LOCA | High | 4.3~86 | General | The process requirements are high, with good transmittance and weather resistance; Strong dependence on equipment, more posts, in covered places, can not be well cured |
Optical bonding | SCA | Low | 1~86 | High | It is a new product developed by combining LOCA and OCA, which can be applied to full-size GG products, with a simple process and easy rework before UV curing; The transmittance is not as good as LOCA and OCA; After UV curing, it is not easy to rework |
Air bonding | Double-sided tape/foam | Low | 1~86 | Low | The process is simple, has cost advantages, and the display effect is poor. |
Shenzhen CDTech Electronics, founded in 2011, is a leading national high-tech enterprise specializing in TFT LCDs, Touch Displays, HDMI Displays, and other display solutions. Our factory, covering 10,000 square meters, is equipped with cutting-edge automatic production and testing equipment, ensuring high-quality, reliable display products for customers worldwide.
In 2025, CDTECH expanded its factory and introduced state-of-the-art equipment, including fully automated laminating machines. These new machines provide:
Higher Precision: Advanced automation reduces human errors, leading to consistently high-quality displays.
Lower Defect Rate: Improved production techniques minimize defects, ensuring superior product reliability.
Enhanced Efficiency: Faster production times allow us to meet large-scale orders efficiently.
Greater Customization: Advanced equipment allows for more tailored display solutions to meet customer-specific needs.
Strong R&D Capabilities: CDTECH invests heavily in research and development, collaborating with industry leaders and research institutions to drive innovation.
Strict Quality Control: All products undergo rigorous testing and quality control measures, ensuring compliance with international standards such as ISO9001, ISO14001, ISO13485 and IATF16949.
Global Market Presence: CDTECH serves customers across multiple industries worldwide, including automotive, medical, industrial, and consumer electronics sectors.
Sustainability Commitment: CDTECH prioritizes environmentally friendly manufacturing processes, using energy-efficient equipment and eco-friendly materials to reduce environmental impact.
The decision between optical bonding and air bonding depends on your specific application requirements:
Choose Optical Bonding if:
You need superior display quality with high brightness and contrast.
The device will be used in outdoor or high-light environments.
A thin and durable display is required.
Budget allows for higher production and repair costs.
Choose Air Bonding if:
Cost is a major concern.
The display will be used in standard indoor environments.
Easy maintenance and component replacement are priorities.
Both optical bonding and air bonding have their advantages and limitations. Optical bonding offers a premium display experience, making it ideal for high-performance devices. On the other hand, air bonding is a cost-effective alternative for budget-conscious applications. At CDTECH, we provide customized solutions tailored to your needs, ensuring the best display performance for your products. Contact us today to learn more about our advanced display technologies and how we can support your business!
