Choosing the right marine display is essential for ensuring safety and efficiency while on the water. A dependable marine display, such as an advanced LCD display, allows you to navigate with confidence, even in tough conditions. Key features like waterproofing and corrosion resistance safeguard the device against harsh marine environments, while high brightness and anti-glare screens enhance visibility under direct sunlight. Marine displays with exceptional image quality and wider viewing angles enable you and your crew to access critical information with ease. Whether you’re relying on a chartplotter or a cutting-edge LCD display, investing in the right technology elevates your boating experience and keeps you ready for any situation.
Importance of screen size for visibility and usability
The size of a marine display plays a crucial role in ensuring you can easily view critical information. Larger screens provide better visibility, especially when you need to monitor multiple data points like navigation charts and sonar readings simultaneously. For smaller vessels, compact displays may save space while still offering essential functionality. Always consider the layout of your boat and the distance from which you’ll view the screen to select the right size.
How resolution impacts clarity and detail
Resolution determines how sharp and detailed the images on your marine display appear. High-resolution screens allow you to see intricate details, such as underwater structures or precise navigation routes. This clarity becomes essential when using advanced features like fishfinders or chartplotters. Opt for displays with at least HD resolution to ensure you don’t miss an critical details during your journey.
Marine environments are harsh, so your display must withstand water exposure and extreme weather. Look for devices with waterproof ratings like IPX6 or IPX7, which protect against splashes and submersion. Ruggedized construction ensures long-term reliability, even in challenging conditions. Waterproofing technology also prevents moisture from damaging internal components.
Saltwater exposure and UV rays can degrade equipment over time. Marine displays designed for these conditions feature anti-corrosion materials and UV-resistant coatings. They also maintain performance in extreme temperatures, ensuring reliability whether you’re navigating in tropical heat or icy waters.
| Feature | Description |
|---|---|
| Ruggedized Construction | Provides long-term reliability due to sturdy construction and robust components. |
| Waterproofing Technology | Protects against moisture intrusion from splashes or direct contact with water. |
| Optimal Performance in Adverse Weather | Designed to withstand rain, fog, and mist while maintaining performance. |
| High Brightness Levels | Ensures visibility under direct sunlight or harsh lighting conditions. |
| Anti-Glare Coatings | Reduces reflections and minimizes the impact of ambient light for better visibility. |
Your marine display should seamlessly connect with other onboard electronics. Whether you rely on GPS for navigation, radar for obstacle detection, or sonar for fishing, compatibility ensures all systems work together efficiently. This integration simplifies your experience and reduces the need for multiple devices.
Modern marine displays often support NMEA 2000, a plug-and-play standard that allows multiple devices to communicate. Compared to older standards like NMEA 0183, NMEA 2000 offers faster data transfer and better interoperability. Check the specifications of your display to ensure it supports the connectivity standard your boat’s systems use.
| Feature | NMEA 2000 | NMEA 0183 |
|---|---|---|
| Data Rate | 250k bits/second | 4800 bits/second |
| Message Format | Compact binary | ASCII serial |
| Network Type | Multiple-talker, multiple-listener | Single-talker, multiple-listener |
| Interoperability | High (plug-and-play) | Limited |
| Technology Used | Controller Area Network (CAN) | Serial communication |
Energy efficiency is crucial when selecting marine displays, especially for extended trips. A display that consumes less power helps conserve your boat’s battery life, ensuring other essential systems remain operational. Look for models with advanced dimming technology, which allows you to adjust the backlight brightness from 0% to 100%. This feature not only saves energy but also enhances visibility in varying light conditions.
Some marine displays, like 15-inch high-brightness models, are designed with energy-saving features. These displays often include certifications such as DNVGL-CG-0339 and IEC60945, which ensure compliance with marine safety and efficiency standards. Additionally, optional transflective film technology improves outdoor visibility without increasing power consumption.
| Feature | Description |
|---|---|
| Size | 15" High Brightness Marine Display |
| Certifications | DNVGL-CG-0339, IEC60945, IACS-E10 |
| Dimming Technology | Hyper dimming technology for backlight brightness control from 0% to 100% |
| Visibility Enhancement | Optional transflective film for outdoor visibility |
Choosing a display with these features ensures you can navigate efficiently while conserving energy, making it ideal for long journeys.
Understanding the power requirements of your marine display is essential for seamless operation. Most displays operate on a 12V or 24V DC power supply, which aligns with standard marine battery systems. Before purchasing, check the display’s voltage range to ensure compatibility with your boat’s setup.
Energy-efficient LCD displays often consume less power, making them a smart choice for conserving battery life. Pairing your display with a high-capacity marine battery ensures uninterrupted performance, even during extended use. Regularly monitor your battery levels and consider investing in a power management system to optimize energy distribution across all onboard electronics.
By selecting a display that balances energy efficiency with performance, you can enjoy reliable functionality without compromising your vessel’s power reserves.
Best for navigation and route planning
Chartplotters are essential tools for navigation. They display detailed maps of waterways, helping you plan routes and avoid hazards. These devices use GPS technology to provide real-time positioning, ensuring you stay on course. Whether you’re cruising along the coast or venturing into open waters, a chartplotter simplifies navigation by offering precise and reliable data. For boaters who prioritize safety and efficiency, this type of marine display is indispensable.
Key features to look for in a chartplotter
When choosing a chartplotter, focus on features that enhance usability. Look for models with high-resolution screens, as they provide clear and detailed maps. Devices with touchscreen controls offer intuitive operation, while keypad options may suit those who prefer physical buttons. Faster processors ensure smooth performance, especially when updating maps or switching between views. Chartplotters with premium IPS screens deliver better clarity and wider viewing angles, making them ideal for shared use on larger vessels.
Ideal for fishing enthusiasts and professionals
Fishfinders are designed to help you locate fish and understand underwater environments. They are perfect for anglers who want to maximize their success on the water. These devices use sonar technology to scan beneath the surface, displaying information about fish, structures, and the seabed. Whether you’re a recreational fisherman or a professional, a fishfinder can transform your fishing experience.
Sonar capabilities allow you to visualize the underwater world in detail. You can identify schools of fish, underwater structures, and changes in depth. Many fishfinders also integrate GPS, enabling you to mark productive fishing spots for future trips. Real-time data tracking keeps you informed about changing sea conditions, ensuring you adapt your strategy as needed. Combination fishfinder/chartplotter models offer split-screen functionality, letting you navigate and fish simultaneously.
| Feature | Description |
|---|---|
| Sonar capabilities | Enables visualization of the seabed and water column layout. |
| GPS integration | Allows marking of favorite fishing spots for future reference. |
| Real-time data tracking | Keeps users updated on changing sea conditions. |

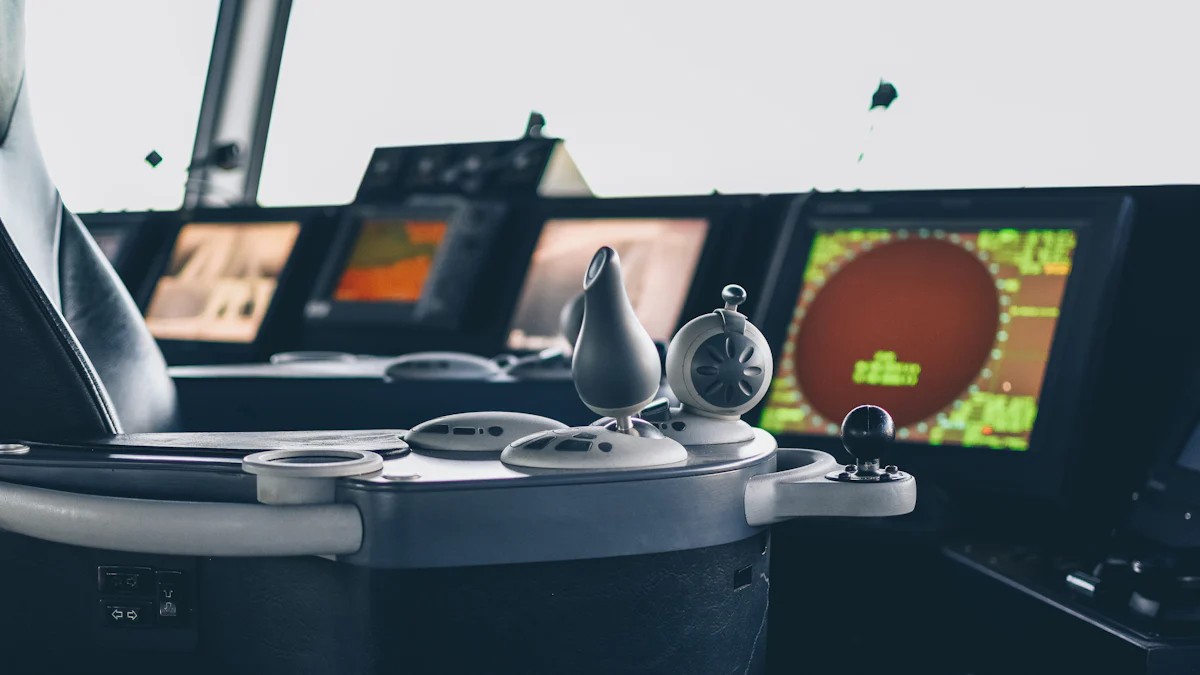

Radar displays are vital for detecting obstacles and monitoring weather. They provide a clear picture of your surroundings, even in low visibility. These displays use radar signals to identify objects like other vessels, landmasses, and buoys. They also help you assess weather conditions by showing rainfall intensity and movement patterns. For boaters navigating in fog, rain, or at night, radar displays offer an extra layer of safety.
Consider a radar display if you frequently encounter challenging conditions. Doppler radar technology enhances weather forecasting by detecting movement in weather patterns. Some models allow you to tilt the radar antenna, providing detailed vertical views of precipitation cells. This feature improves obstacle detection and helps you make informed decisions. Radar displays are especially useful for larger vessels or those operating in busy waterways.
Indicate rainfall intensity with color-coded signals.
Detect movement in weather patterns using Doppler radar.
Provide detailed vertical cross-sections of precipitation cells.
By understanding the unique strengths of each type of marine display, you can select the one that best suits your needs, whether it’s navigation, fishing, or safety.
Multifunction LCD Displays (MFDs) combine several marine technologies into a single, user-friendly device. These displays integrate tools like GPS, radar, sonar, and chartplotters, allowing you to manage all your navigation and monitoring needs from one screen. This versatility makes MFDs a popular choice for boaters who want to simplify their setup without sacrificing functionality.
With an MFD, you can switch between different modes or even view multiple data streams simultaneously. For example, you might display a navigation chart on one side of the screen while monitoring sonar data on the other. This feature helps you stay informed and make quick decisions. Many MFDs also support touchscreen controls, making it easy to customize layouts and access specific tools.
Modern MFDs often include wireless connectivity, enabling integration with smartphones or tablets. You can sync your device to receive updates, share routes, or control certain functions remotely. This level of convenience enhances your boating experience and keeps you connected while on the water.
MFDs offer several advantages, but they may not suit everyone. Understanding their strengths and limitations will help you decide if they are the right choice for your vessel.
Space-saving design: MFDs reduce clutter by combining multiple devices into one.
Ease of use: A single interface simplifies operation, especially for beginners.
Customizability: You can tailor the display to show only the information you need.
Advanced features: Many models include cutting-edge technologies like augmented reality overlays.
Higher cost: MFDs tend to be more expensive than standalone marine displays.
Complexity for some users: The abundance of features may overwhelm those who prefer simpler setups.
Single point of failure: If the MFD malfunctions, you could lose access to multiple systems at once.
MFDs work best for boaters who value convenience and advanced functionality. However, if you prefer a more modular approach or have a limited budget, standalone devices might be a better fit.
Tip: When choosing an MFD, consider the size of your vessel and the type of activities you enjoy. Larger boats with more complex systems benefit most from these all-in-one solutions.
Pros and cons of touchscreen interfaces
Touchscreen controls offer a modern and intuitive way to interact with marine displays. They allow you to navigate menus effortlessly, similar to using a smartphone. This user-friendly interface makes accessing features like navigation charts or sonar data straightforward. Touchscreens also support entertainment and communication apps, adding versatility to your device. However, they come with a higher price tag and require regular cleaning to maintain optimal performance.
When button controls might be a better choice
Button controls excel in challenging conditions. They remain functional in adverse weather, such as heavy rain or rough seas, where touchscreens may struggle. You can operate them while wearing gloves, making them ideal for colder climates. Button controls also provide a tactile experience, which helps you make precise adjustments while underway. If you prioritize reliability and usability in tough environments, button controls might be the better option.
Visibility is critical when using marine displays, whether you’re navigating at night or under direct sunlight. Poor visibility can lead to missed details, increasing the risk of errors. A display that performs well in both low-light and bright conditions ensures you can access vital information at all times.
Modern marine displays incorporate advanced technologies to improve readability. High brightness levels, ranging from 1000 to 3000 nits, ensure clear visibility even in bright sunlight. Anti-reflective coatings reduce glare, making it easier to read the screen from different angles. For nighttime use, some displays feature NVIS compatibility, which works seamlessly with night vision goggles. These technologies ensure your LCD display remains functional and easy to read in any lighting condition.
Wireless connectivity enhances the functionality of marine displays. Wi-Fi allows you to network multiple devices, enabling remote control of your display through apps on smartphones or tablets. It also supports faster data transfer, with speeds exceeding 11 million bits per second, compared to Bluetooth’s 800,000 bits per second. This higher bandwidth is ideal for downloading maps or sharing data. Wi-Fi’s extended range, up to 400 feet, ensures reliable connectivity across your vessel.
Smart integration transforms how you interact with your marine display. You can sync your device with smartphones or tablets to access additional features, such as route sharing or software updates. This integration streamlines your boating experience, allowing you to control and monitor your display from anywhere on your boat. Wireless-enabled marine displays bring convenience and efficiency to your navigation and monitoring systems.
Installation Best Practices
Choosing the right mounting location
Selecting the proper mounting location ensures your marine display performs optimally. Place the display where it is easily visible and accessible while operating your vessel. Avoid areas exposed to direct sunlight, as prolonged exposure can cause overheating and material degradation. Ensure the mounting surface is stable to prevent vibrations that could affect the display’s performance.
Ensuring proper wiring and connections
Proper wiring is essential for reliable operation. Use marine-grade wiring and connectors to withstand the harsh marine environment. Route cables carefully to minimize exposure to water and physical damage. Secure connections tightly to prevent disconnections during rough conditions. Double-check all wiring to ensure compatibility with your boat’s power system and other electronics.
Tip: Regularly inspect the wiring for signs of wear or corrosion to maintain consistent performance.
Saltwater exposure can corrode your marine display over time. Clean the display regularly with freshwater and a soft cloth to remove salt deposits. Avoid using abrasive materials that could scratch the screen. Store your LCD display in a dry, protected area when not in use to shield it from damp and salty conditions.
Frequent inspections help you identify potential issues early. Check for signs of corrosion, especially around connectors and vulnerable areas. Inspect the battery powering your display to ensure it operates efficiently. Perform these checks routinely to extend the lifespan of your marine electronics and maintain their reliability.
Connectivity issues often arise from outdated software or loose connections. Update your marine display’s software regularly to prevent inefficiencies. If the problem persists, inspect the wiring and connectors for damage or corrosion. Cleaning and drying the affected areas can resolve many connectivity problems.
If your display malfunctions, start by resetting it to factory settings. Back up your data before performing the reset to avoid losing important information. Consult the user manual or online guides for specific troubleshooting steps. If the issue remains unresolved, contact the manufacturer or a professional technician for assistance.
Note: Regular maintenance and proper care can prevent most common issues, ensuring your marine display remains dependable.
Choosing the right marine display ensures safety, efficiency, and enjoyment on the water. Focus on size, durability, and compatibility to meet your specific boating needs. Displays with user-centric designs and high visibility enhance decision-making and safety. Features like waterproofing and anti-glare coatings ensure long-term reliability in harsh conditions. Investing in a high-quality LCD display provides clear, distraction-free information, even in adverse weather. By selecting a display tailored to your activities, you create a safer and more enjoyable boating experience for years to come.
