IPS in LCD Panel and Wide Viewing Angle Technology

In the ever-evolving world of display technology, IPS LCD panels have emerged as one of the most advanced and versatile display solutions. Widely used in applications ranging from smart home to automotive and industrial control, IPS panels offer a significant improvement over traditional LCD technology. Their key advantages—color accuracy, improved contrast, and wide viewing angles—have made them the go-to choice for modern visual experiences.

Here, we will explore IPS LCD technology how it differs from other display technologies, and its real-world applications. Additionally, we will focus on one of the most crucial aspects of IPS panels: wide viewing angle technology, and why it is essential in enhancing the user experience across various industries.

What is IPS LCD Technology?

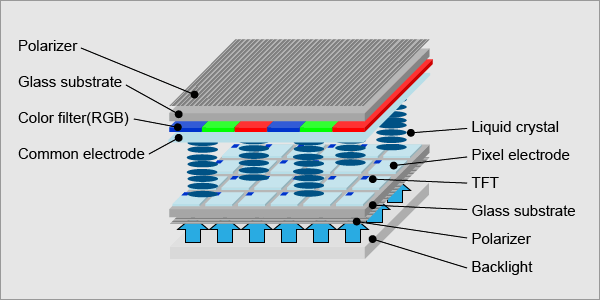

LCD (Liquid Crystal Display) is a widely used display technology that operates by manipulating liquid crystals between two layers of glass or plastic. These crystals don’t emit light by themselves but instead rely on a backlight, usually LED (Light Emitting Diode), to produce the image on the screen. Liquid crystals can be aligned in different ways, which affects how they transmit light and, ultimately, the colors and brightness of the display.

IPS (In-Plane Switching) is one of the most significant innovations in the realm of LCD technology. Developed in the early 1990s, IPS technology was designed to address some of the limitations of earlier LCD technologies like TN (Twisted Nematic). The defining feature of IPS is the way in which liquid crystals are aligned within the display. In a typical TN panel, the liquid crystals twist and untwist as they pass through the screen, leading to limited color reproduction and poor viewing angles. In contrast, IPS panels align liquid crystals in parallel to the glass layers, ensuring that the crystals are more uniform in their light transmission.

This parallel alignment allows for better color accuracy, more consistent contrast ratios, and most importantly, significantly wider viewing angles compared to traditional LCD technologies. The result is a display that looks vibrant and clear from virtually any angle, making it ideal for applications where the screen is viewed by multiple people or at varying angles.

Benefits of IPS LCD Panels

1. Superior Color Accuracy and Consistency

One of the primary reasons why IPS panels have become so popular is their superior color accuracy. Traditional TN panels tend to suffer from color distortion when viewed from off-center angles, leading to a washed-out or inaccurate picture. IPS panels, on the other hand, maintain their color integrity regardless of the viewing angle. This is crucial for applications where precise color reproduction is required, such as in professional design work, photography, and entertainment displays.

Additionally, the parallel alignment of the liquid crystals in IPS panels ensures more uniform light transmission across the entire screen, which further improves color consistency. This is particularly important for users who require consistent visuals, such as graphic designers, photographers, and videographers, where accurate color representation is essential for their work.

2. Enhanced Contrast and Black Levels

Another advantage of IPS displays is their improved contrast ratios and black levels. Although IPS panels are not as capable as OLED (Organic Light Emitting Diode) displays when it comes to achieving absolute blacks, they still offer better contrast than traditional TN or VA (Vertical Alignment) panels. The uniformity of the liquid crystal alignment in IPS panels reduces the potential for light leakage, which helps improve the overall contrast of the display.

3. Wide Viewing Angles

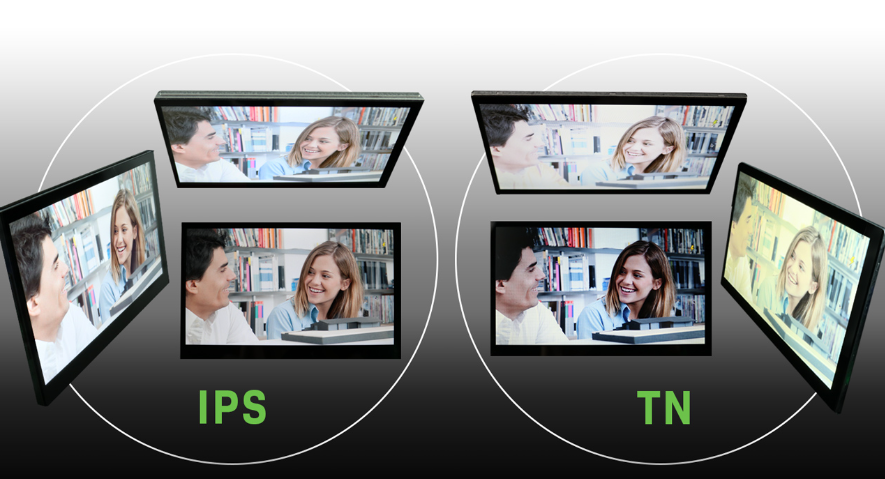

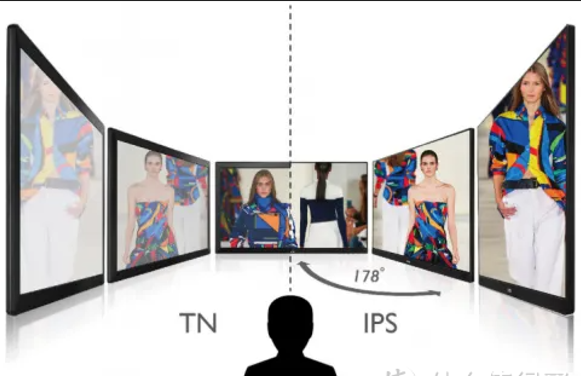

One of the most notable benefits of IPS technology is its wide viewing angle. In typical TN panels, the image quality deteriorates when the viewer is not directly in front of the screen. Colors become washed out, and the contrast ratio diminishes as the angle of view changes. In contrast, IPS panels maintain accurate colors, brightness, and contrast from wide angles—often up to 178 degrees both horizontally and vertically. This wide viewing angle makes IPS displays ideal for devices or environments where the screen needs to be visible to multiple viewers at once, such as in automotive displays, televisions, and large monitors.

Wide Viewing Angle Technology: The Core Advantage of IPS

The wide viewing angle of IPS panels is a direct result of the way liquid crystals are aligned within the panel. By arranging the liquid crystals parallel to the glass, IPS technology minimizes the light distortion that occurs in traditional panels, allowing light to pass through the crystals in a more predictable manner.

In non-IPS panels, such as TN or VA displays, the liquid crystals are oriented in a way that they either twist or bend light as it passes through, which leads to color and brightness shifts when viewed from off-center angles. IPS technology overcomes these issues by allowing the crystals to remain in a more uniform alignment, which helps maintain a more consistent image quality across the screen. This results in wide viewing angles without the significant color degradation seen in older technologies.

Applications of IPS LCD Panels with Wide Viewing Angles

1. Automotive Displays

IPS LCD panels are increasingly being integrated into automotive displays, such as digital instrument clusters, infotainment systems, navigation screens, and rearview camera monitors. In the automotive environment, screens are often viewed from varying angles by both the driver and passengers, making the wide viewing angle of IPS displays particularly valuable. Whether a passenger is sitting in the front or back, or if the driver needs to glance at the display from different angles, IPS technology ensures that the information remains clear and accurate.

Additionally, automotive displays are often exposed to varying lighting conditions, including bright sunlight. The color accuracy and high contrast of IPS panels allow these displays to remain legible and vibrant even in challenging lighting environments, which is essential for safety and user experience.

2. Smartphones and Tablets

Smartphones and tablets are among the most popular devices using IPS LCD panels. The wide viewing angle ensures that content remains vibrant and legible when viewed from various angles, whether the user is holding the device in their hands or showing it to someone else. In addition to this, the superior color accuracy of IPS panels makes them a favorite for multimedia consumption, such as watching videos or browsing photos.

3. Medical and Industrial Applications

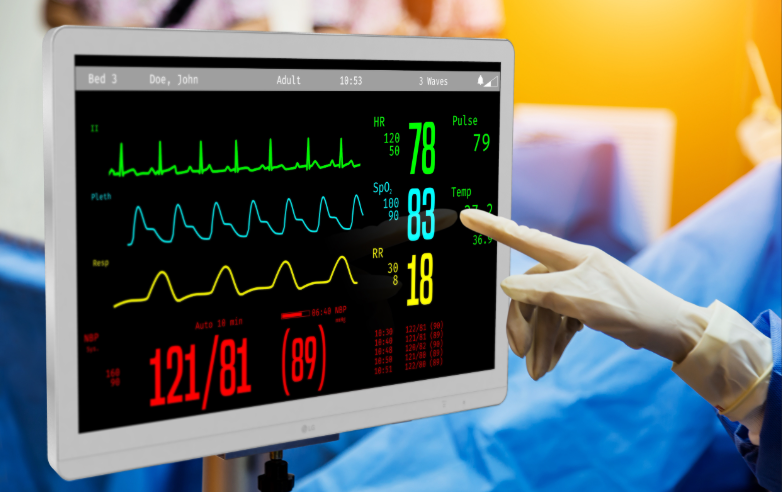

In fields like medical imaging, where high color accuracy and precision are paramount, IPS displays are favored for their consistency and clarity. Medical professionals rely on accurate displays to make life-critical decisions, such as interpreting X-rays, MRIs, and other imaging data. The wide viewing angle of IPS panels ensures that these critical images can be viewed clearly from different positions, which is often necessary in clinical settings.

Conclusion

IPS LCD panels have become the gold standard in display technology, offering superior color accuracy, contrast, and most importantly, wide viewing angles. Their ability to maintain image quality from almost any angle makes them indispensable in a wide range of applications, from automotive displays to consumer electronics and professional fields. As display technology continues to evolve, IPS panels remain a fundamental part of delivering high-quality, consistent, and reliable visuals, contributing to an improved user experience across multiple industries.
